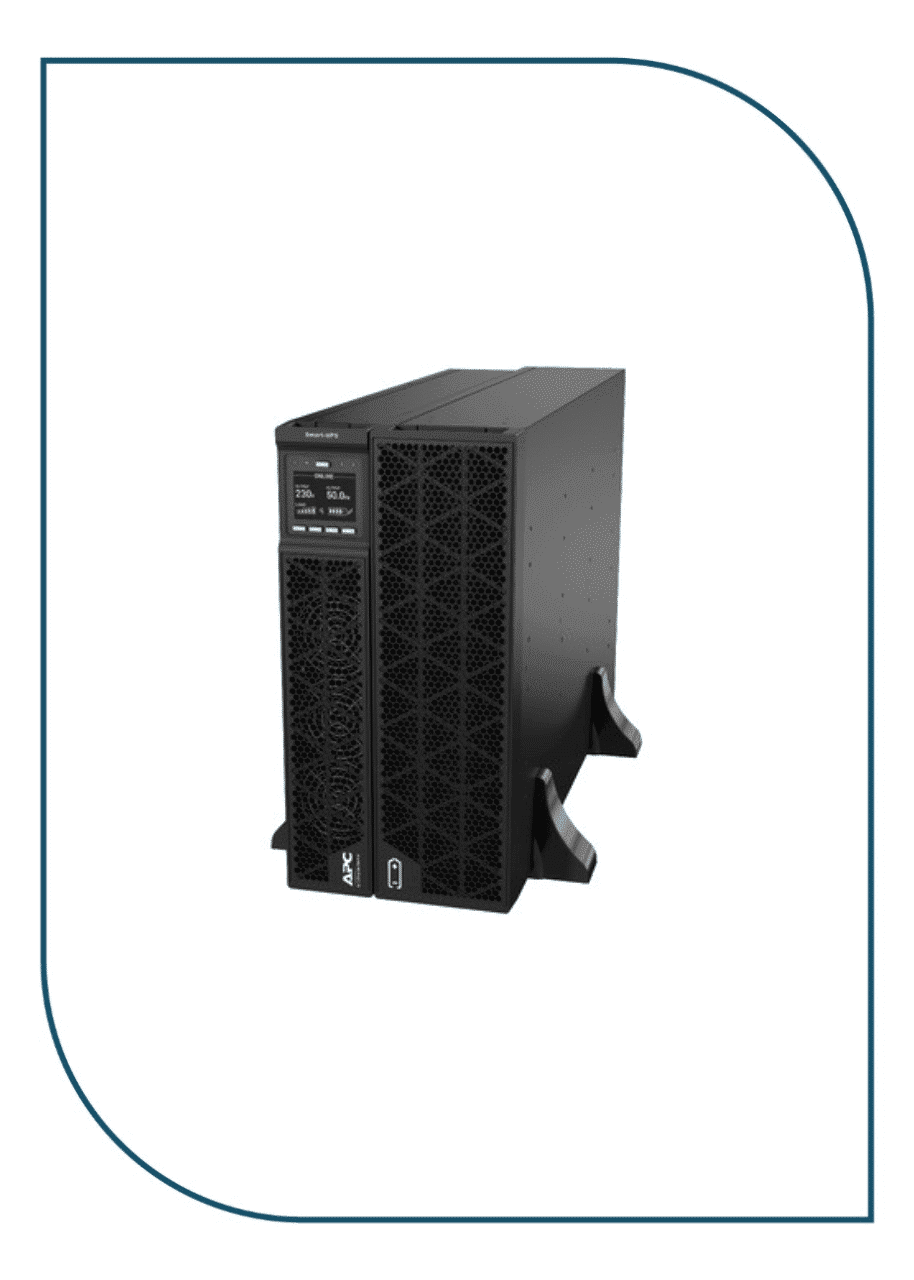

APC Smart-UPS On-Line, Network Card, W/O rail kit (SRTG8KXLI)
APC Smart-UPS On-Line, Network Card, W/O rail kit (SRTG8KXLI) - Image 2

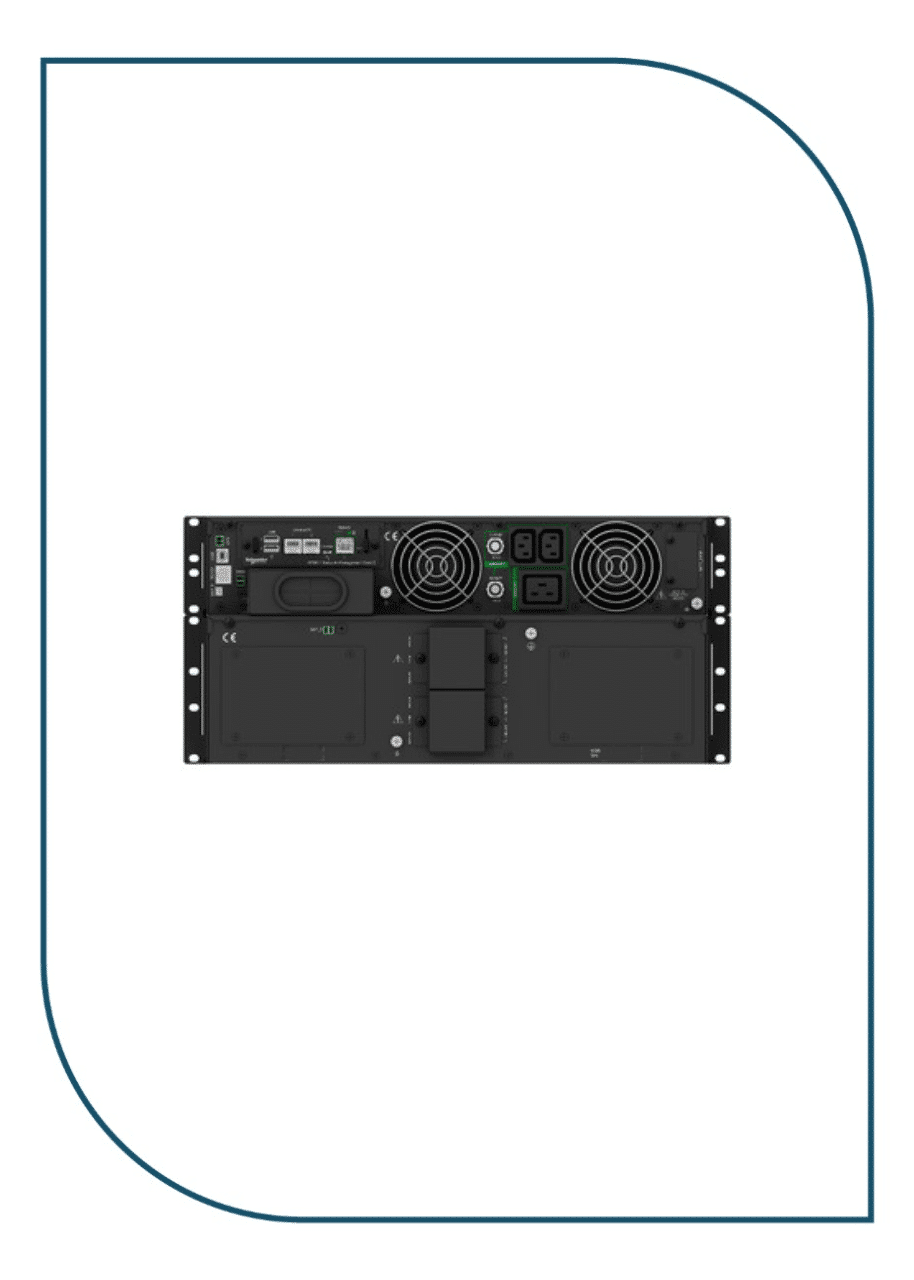

APC Smart-UPS On-Line, Network Card, W/O rail kit (SRTG8KXLI) - Image 3

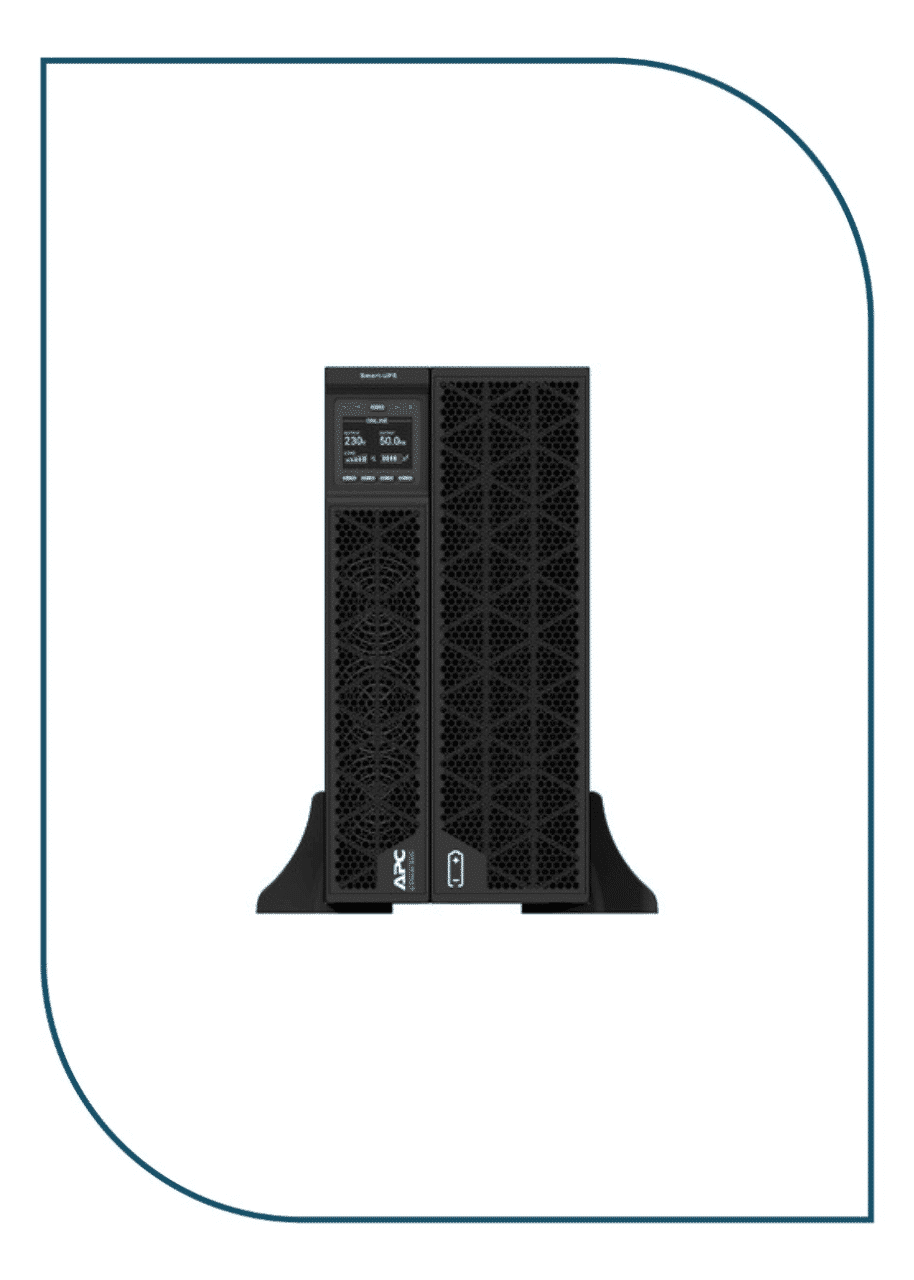

APC Smart-UPS On-Line, Network Card, W/O rail kit (SRTG8KXLI) - Image 4

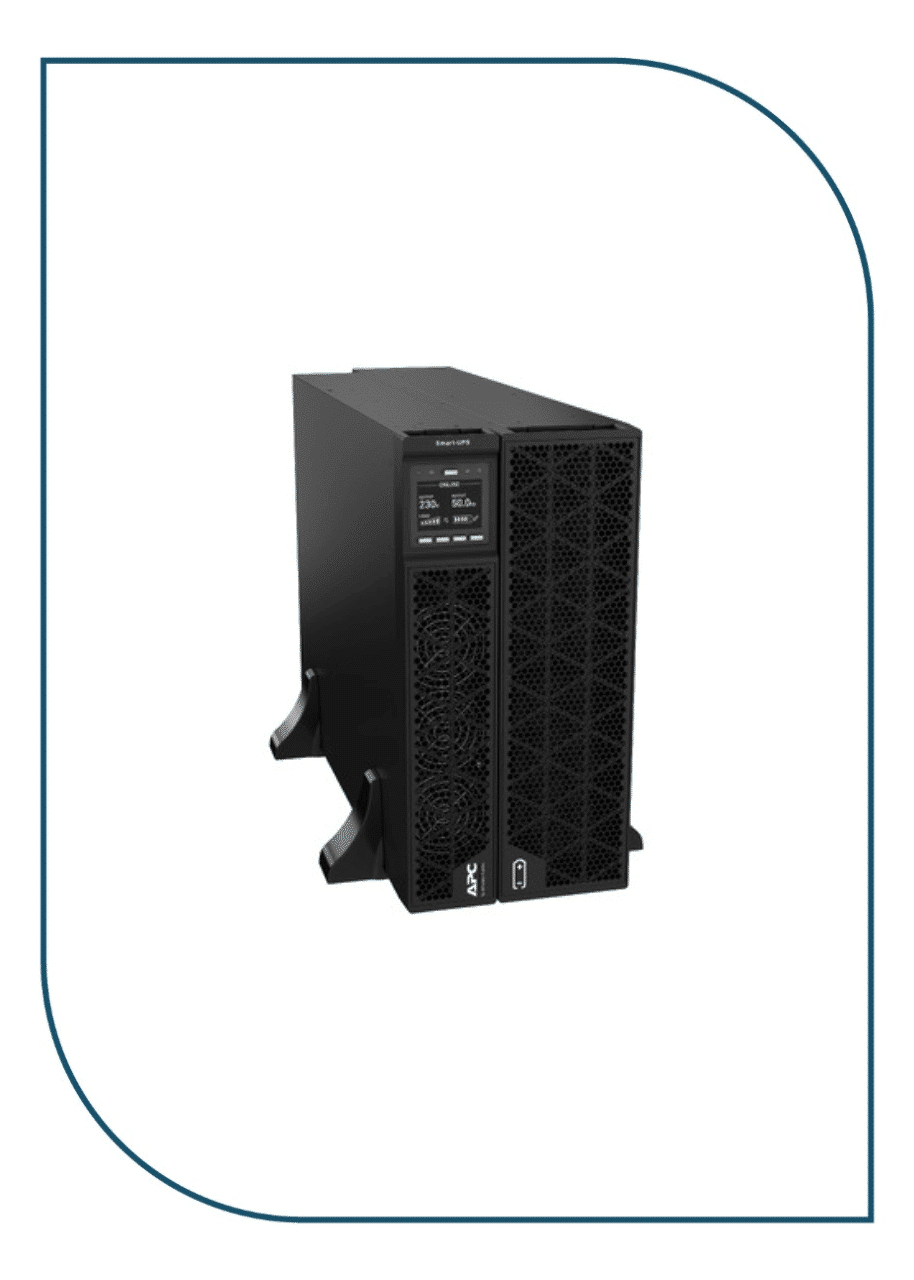

APC Smart-UPS On-Line, Network Card, W/O rail kit (SRTG8KXLI) - Image 5

APC Smart-UPS On-Line, Network Card, W/O rail kit (SRTG8KXLI)

SKU: SRTG8KXLI
In Stock
Call for Pricing
In Stock

SRTG8KXLI This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity.

Brand:

Description

SRTG8KXLI
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 8kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions.

Specifications :

Overview
Lead time Usually in Stock
Main
Run time for load

W

information_stroke
Min-max: 800-8000 W
4min 55s
Max. Capacity Used
information_stroke

100 %
Main Input Voltage 230 V
Product or component type Uninterruptible power supply (UPS)
Other Input Voltage 220 V

240 V
Main Output Voltage 230 V
Other Output Voltage 220 V

240 V
Rated power in W 8000 W
Rated power in VA 8000 VA
output connection type 2 IEC 60320 C13

1 IEC 60320 C19
Output connector type Hard wire 3-wire (1P + N + E) 1
Number of rack unit 5U
Provided equipment 1 x USB cable

1 x RJ45 cable

2 x rack mounting brackets

2 x stabilization/wall mounting feet

2 x installation manual

1 x C13-C14 power cord

1 x external battery pack

1 x battery cable
Range of product Smart-UPS On-Line
Batteries & Runtime
Run Time

Efficiency

Battery type Lead-acid battery
Battery voltage +/- 96 V
Extended runtime 1
Number of battery filled slots 2
Number of battery free slots 0
Battery recharge time 4 h
Number of battery replacement quantity 2
Battery life 3…5 year(s)
Replacement battery

Battery charger power 392 W rated
General
Number of power module filled slots 0
Number of power module free slots 0
Redundant No
UPS type Double conversion online
Physical
Colour Black (RAL 9005)
Height 21.7 cm
Width 44 cm
Depth 68 cm
Product weight 101.5 kg
Mounting preference Lower
Mounting mode Rack-mounted with kit
Two post mountable 0
USB compatible Yes
Mounting position Horizontal
Input
Maximum input current 30 A
Switching current capacity 40 A
Input voltage limits 160…285 V full load

100…285 V half load
Number of input connectors 1 hard wire 3-wire (1P + N + E)
Network frequency 40…70 Hz auto-sensing
Output
Bypass type Internal bypass (automatic and manual)
Crest factor 3 : 1
Harmonic distortion Less than 2 %
Maximum configurable power in VA 8000 VA
Maximum configurable power in W 8000 W
Wave type Sine wave
Efficiency 93.5 %
Output frequency 50/60 Hz +/- 4 Hz sync to mains
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Conformance
Product certifications CE

UKCA

TISI
Standards EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018
Environmental
Acoustic level 55 dBA
Heat dissipation 1774 Btu/h
Operating altitude 0…3000 m
Ambient air temperature for operation 0…40 °C
Ambient air temperature for storage -15…45 °C
Storage altitude 0…15000 m
IP degree of protection IP20
Relative humidity 0…95 % non-condensing
Storage Relative Humidity 0…95 % non-condensing
Communications & Management
Emergency power off Yes
Preinstalled device Network management card 3 with environmental monitoring
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rate 600 J
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 68.5 cm
Package 1 Width 59.4 cm
Package 1 Length 79.4 cm
Package 1 Weight 124.5 kg
Contractual warranty
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
