FortiGate 120G | AI-Powered NGFW & 10GE SD-WAN Security
The FortiGate 120G Firewall provides AI-powered Next-Generation Firewall security, integrated SD-WAN, and 10GE connectivity for enterprise and hybrid IT networks. It features dual redundant power supplies, hardware-accelerated performance, and scalable protection for high-demand environments.
Description
The FortiGate 120G Firewall is an enterprise-grade appliance designed to deliver Next-Generation Firewall (NGFW) protection, AI/ML-powered threat detection, and SD-WAN integration. It combines high performance, reliability, and security in a compact 1RU rack-mountable form factor.
With 3.1 Gbps NGFW throughput, 5.3 Gbps IPS, 2.8 Gbps threat protection, and up to 39 Gbps firewall throughput, the FortiGate 120G ensures fast inspection of network traffic and protection against advanced threats. It supports 35 Gbps IPsec VPN throughput, >3 Gbps SSL inspection, and 6.7 Gbps application control, enabling secure, high-volume communications across distributed enterprise networks.

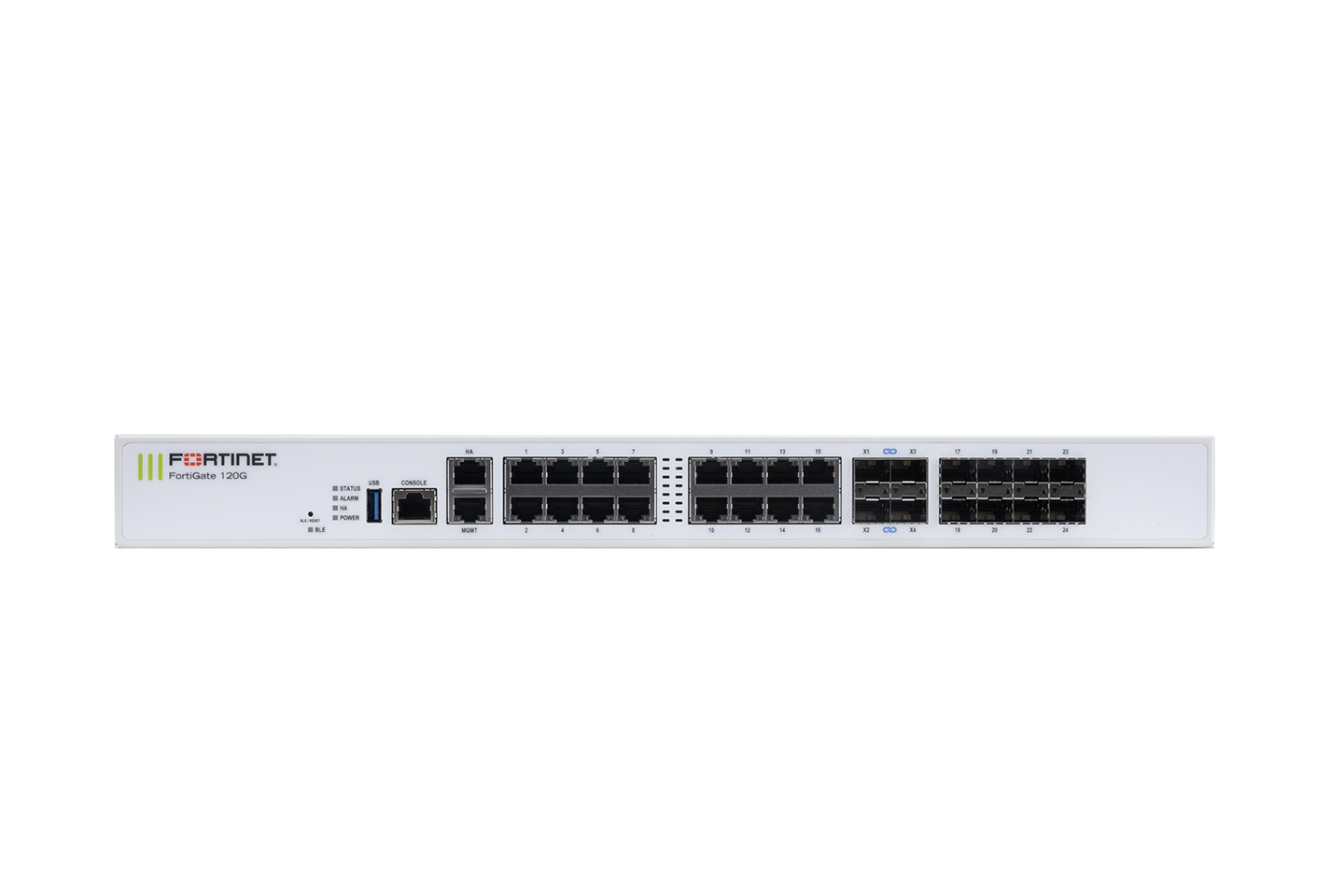

Connectivity is versatile with 4× 10GE SFP+ FortiLink slots, 8× GE SFP fiber ports, and 16× GE RJ45 copper ports. Management and high-availability options are supported through 2× GE RJ45 HA/management ports, 1× RJ45 console port, and 1× USB port, offering centralized network control and flexible deployment.
Powered by the customized SP5 ASIC (Security Processing Unit), the FortiGate 120G delivers hardware-accelerated NGFW performance. Dual non-hot swappable AC power supplies provide 1+1 redundancy, while the Trusted Platform Module (TPM) ensures secure storage and management of cryptographic keys. Optional transceivers support 1GE SFP modules (SX, LX, RJ45) and 10GE SFP+ modules (SR, LR, ER, RJ45) for extended connectivity.
Available bundles:
-
FG-120G-BDL-950-12 – Hardware + 1-Year FortiCare Premium & FortiGuard UTP
-
FG-120G-BDL-950-36 – Hardware + 3-Year FortiCare Premium & FortiGuard UTP
The FortiGate 120G Firewall is ideal for enterprises seeking AI-powered NGFW, SD-WAN integration, and scalable high-speed connectivity in a compact, reliable, and rack-mountable form factor.
High-Performance Security:
-
NGFW Throughput: 3.1 Gbps
-
IPS Throughput: 5.3 Gbps
-
Threat Protection Throughput: 2.8 Gbps
-
Firewall Throughput: Up to 39 Gbps
-
IPsec VPN Throughput: 35 Gbps
-
Application Control Throughput: 6.7 Gbps
-
SSL Inspection Throughput: >3 Gbps
Versatile Connectivity & Interfaces:
-
10GE Connectivity: 4× 10GE SFP+ FortiLink Slots
-
Fiber Connectivity: 8× GE SFP Ports
-
Copper Connectivity: 16× GE RJ45 Ports
-
Management/HA: 2× GE RJ45 Ports
-
Console Port: 1× RJ45 Console Port
-
USB Port: 1× USB Port
Hardware & Reliability:
-
Processor: Customized SP5 ASIC for hardware acceleration
-

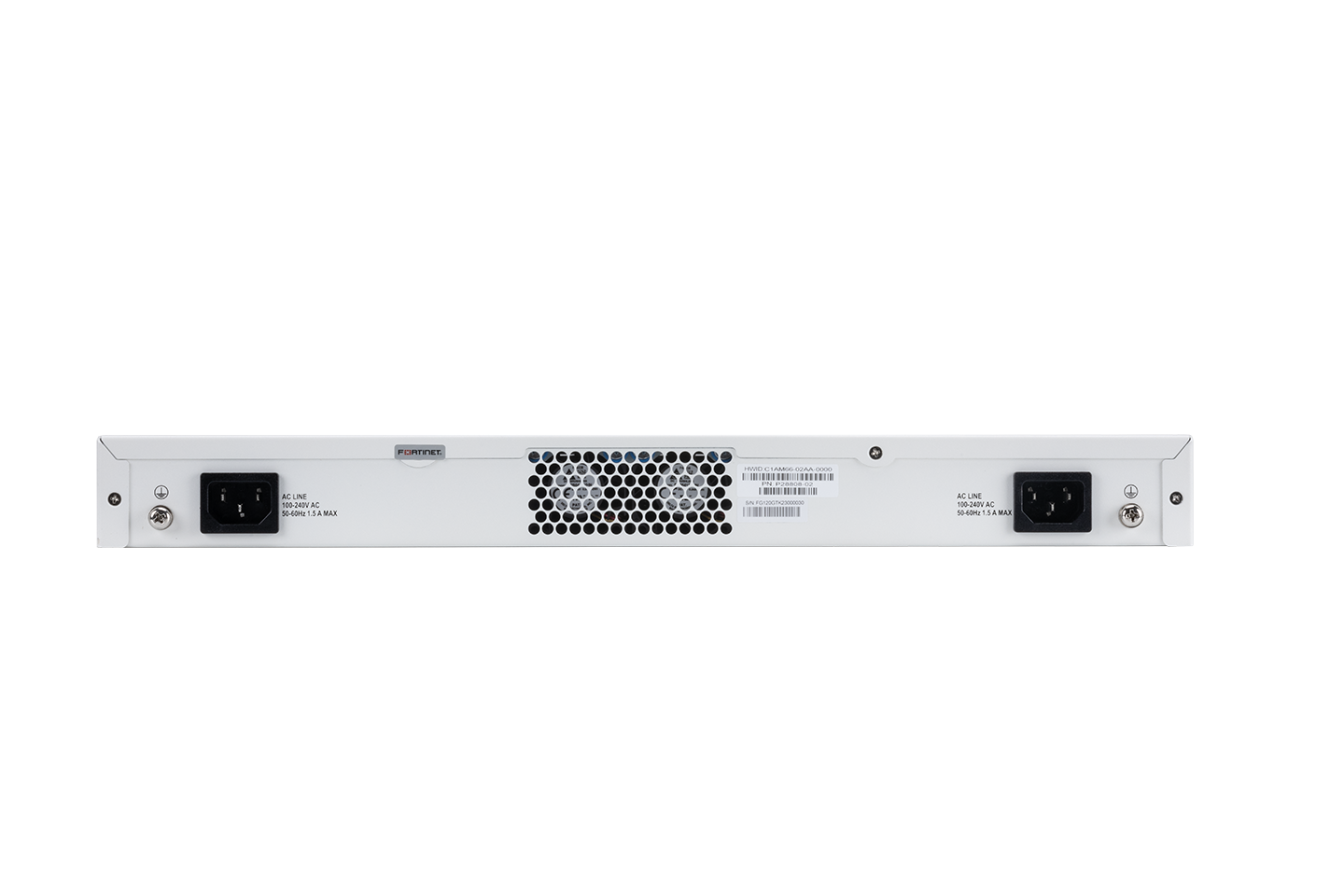

Dual AC Power Supplies (Non-Hot Swappable, 1+1 Redundancy)
-
Trusted Platform Module (TPM)
-
Optional Transceivers: 1GE SFP (SX/LX/RJ45), 10GE SFP+ (SR/LR/ER/RJ45)
Physical & Environmental:
-
Form Factor: 1RU Rack Mount
-
Dimensions: 1.73 × 17 × 10 in (44 × 432 × 254 mm)
-
Weight: 5.52 kg (12.17 lbs)
-
Power Consumption: Avg 43 W / Max 47 W
-
Heat Dissipation: ~138 BTU/hr
Technical Datasheet
You can download the full technical documentation for this product from the link below:
Download PDF Datasheet
