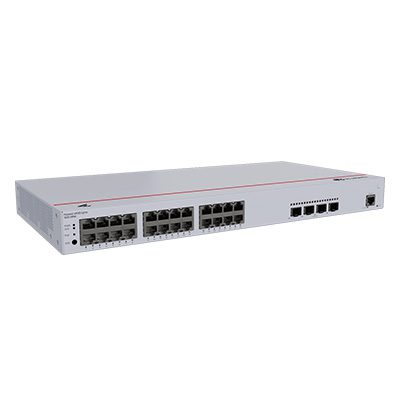

Huawei S220‑24P4X — 24‑Port PoE+ Gigabit Switch with 4× 10GE SFP+ Uplinks

Key Features:

• 24× Gigabit PoE+ Ports
  IEEE 802.3af/at compliant to provide power and data over a single cable.

• 4× 10GE SFP+ Uplink Ports
  High-speed fiber or copper uplinks for aggregation to core networks.

• Total PoE Budget: 400 W
  Supports multiple IP cameras, access points, and VoIP phones simultaneously.

• Layer‑2/Layer‑3 Switching
  Supports VLANs, QoS, link aggregation, static routing, and advanced traffic management.

• Fan-Assisted Cooling
  Efficient thermal management for rack-mounted environments.

• Built-in AC Power Supply
  AC 100–240 V, 50/60 Hz input for global compatibility.

• High Switching Capacity
  176 Gbps backplane ensures smooth traffic flow.

• Energy-efficient Design
  Reduces power consumption when network traffic is low.

• Flexible Deployment
  1U rackmount design suitable for enterprise access, SMB, and campus networks.

Technical Highlights:

• Switch Type: Layer‑2/Layer‑3 PoE+ Gigabit Switch

• Downlink Ports: 24× 10/100/1000 BASE‑T RJ45 PoE+

• Uplink Ports: 4× 10GE SFP+

• PoE Standards: IEEE 802.3af/at

• Total PoE Budget: 400 W

• Switching Capacity: 176 Gbps

• Forwarding Rate: ~130 Mpps

• MAC Address Table: 32,000 entries

• Power Input: AC 100–240 V, 50/60 Hz

• Cooling: Fan-assisted

• Chassis: 1U rackmountable, metal

• Dimensions (H × W × D): ~43.6 × 442 × 350 mm

• Weight: ~10 kg

• Operating Temperature: 0 °C – 45 °C

• Surge Protection: ±6 kV on Ethernet ports; ±6 kV on AC power (region-dependent)

Applications:

• Enterprise Access Networks — Connect desktops, VoIP phones, Wi-Fi APs, and IP cameras.

• Small & Medium Business (SMB) LANs — High-density gigabit access with PoE+ support.

• Campus Networks — Layer‑2/3 switch for classrooms, offices, or labs.

• IP Surveillance Systems — Powers and connects multiple PoE cameras.

• Wi-Fi Access Point Deployment — Provides both power and gigabit connectivity for APs.

• Rack-Mount Network Installations — Compact 1U form factor for wiring closets or small data centers.
