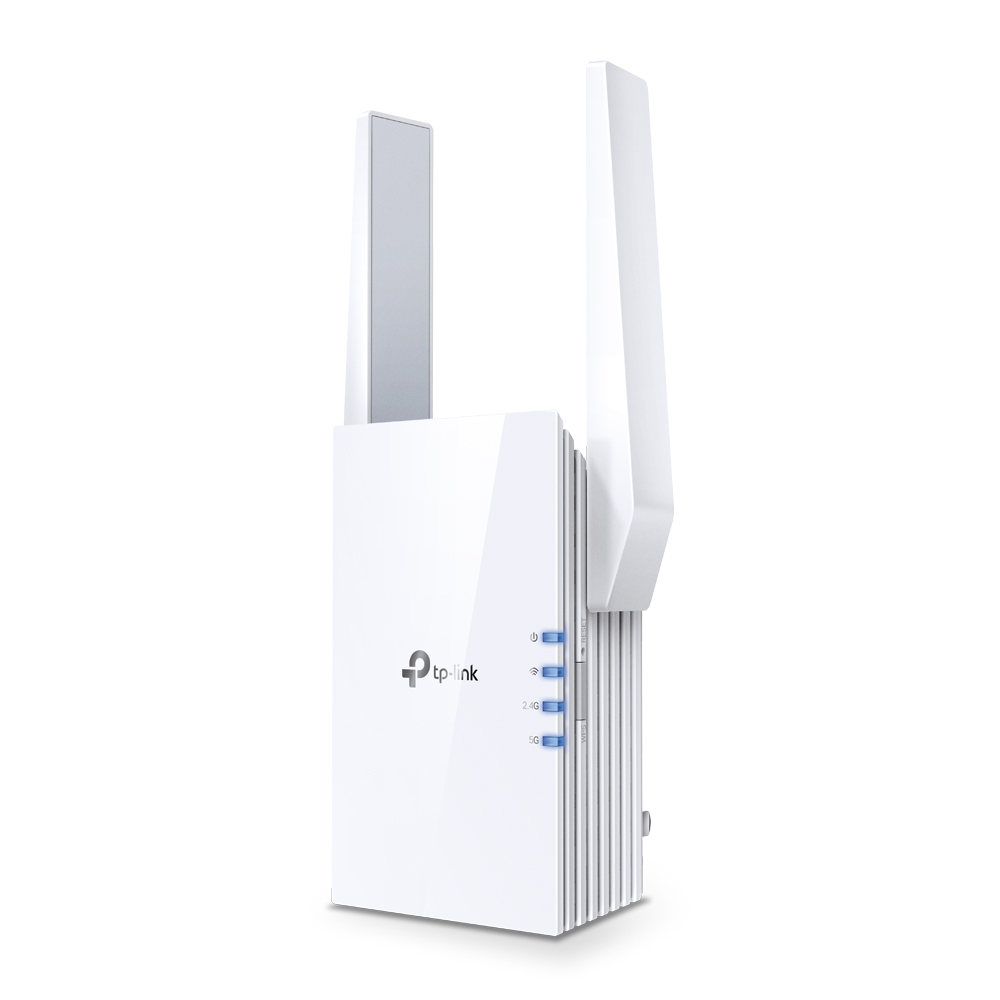

RE705X AX3000 Mesh WiFi 6 Extender
RE705X
- Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds.
Description
RE705X
| HARDWARE FEATURES | |
|---|---|
| Ports | 1 Gigabit Ethernet Port |
| Button | • WPS Button
• Reset Button |
| Input Power | 100-240V~50/60Hz |
| Power Consumption | 12.6 W |
| Dimensions ( W x D x H ) | 97×46×158 mm |
| Antenna | 2 External Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | • IEEE 802.11a/n/ac/ax 5GHz
• IEEE 802.11b/g/n/ax 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | • 574 Mbps at 2.4GHz
• 2402 Mbps at 5GHz |
| Working Modes | Range Extender / Access Point |
| Reception Sensitivity | 5GHz:
11a 6Mbps:-97dBm 11a 54Mbps:-78dBm 11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -62dBm 11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -61dBm 11ax HE160 MCS11: -59dBm2.4GHz: 11g 6Mbps:-96dBm 11g 54Mbps:-78dBm 11ax HE20 MCS0: -95dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -93dBm 11ax HE40 MCS11: -62dBm |
| Wireless Functions | • Enable/Disable Wireless Radio
• DFS (the latest firmware and hardware version is required) • Access Control • LED Control • Power Schedule • Wi-Fi Coverage Adjustment |
| Wireless Security | • WEP
• WPA • WPA2 • WPA3 |
| Transmission Power | CE:
• 2.4 GHz ≤ 16 dBm • 5 GHz ≤ 21 dBm |
| Mesh Technology | EasyMesh-Compatible |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Contents | • Wi-Fi Range Extender RE705X
• Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Environment | • Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
