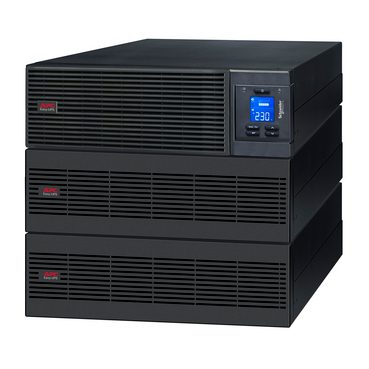

APC SRV15KRILRK Easy UPS On-Line, 15kVA/15kW, Rackmount 9U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit
APC SRV15KRILRK Easy UPS On-Line, 15kVA/15kW, Rackmount 9U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit - Image 2
Egyptian pound (EGP) - EGP
  • United States dollar ($) - USD
  • Egyptian pound (EGP) - EGP

APC SRV15KRILRK Easy UPS On-Line, 15kVA/15kW, Rackmount 9U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit

SKU: SRV15KRILRK

Contact us for pricing on this product:

Request Quote by EmailWhatsApp Us
In Stock
EGP 0.00
In Stock

SRV15KRILRK This 15kVA double-conversion on-line 9U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions.

Brand:

Description

SRV15KRILRK

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 15kVA double-conversion on-line 9U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions.
DATA SHEET

Specifications

Overview
Lead timeUsually Ships within 4 Weeks
Main
Run time for load

W

information_stroke
Min-max: 1500-15000 W
4min 37s
Max. Capacity Used
information_stroke

100 %

Main Input Voltage230 V AC

415 V AC

Product or component typeUninterruptible power supply (UPS)
Other Input Voltage220 V

230 V

415 V

Main Output Voltage230 V
Other Output Voltage220 V

240 V

Rated power in W15000 W
rated power in VA15000 VA
Output connector typeHard wire 3-wire (1P + N + E) 1
Number of rack unit9U
Provided equipment1 USB cable

1 RS-232 configuration cable

3 rack mounting brackets

3 stabilization/wall mounting feet

6 jumper bar

2 external battery pack

1 battery cable

user manual

Range of productEasy UPS On-Line
Batteries & Runtime
Run Time

Efficiency

Battery typeLead-acid battery
Battery voltage+/- 120 V
Extended runtime1
Number of battery filled slots0
Number of battery free slots0
Battery recharge time6 h
Battery charger power2340 W rated
General
RedundantNo
Physical
ColourBlack (RAL 7010)
Height39.3 cm
Width43.8 cm
Depth69.0 cm
Net weight157 kg
Mounting locationFront
Mounting preferenceNo preference
Mounting modeRack-mounted
USB compatibleYes
Mounting positionHorizontal
Input
Input voltage limits110…300 V half load

176…300 V full load

Number of input connectors1 hard wire 3-wire (1P + N + E)

1 hard wire 5-wire (3P + N + E)

Network frequency40…70 Hz auto sensing
Output
Maximum configurable power in VA15000 VA
Maximum configurable power in W15000 W
Output frequency50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion2 %
UPS typeDouble conversion online
Wave typeSine wave
Efficiency95 % (full load)
Additional informationConfigurable for 220 : 230 or 240 nominal output voltage
Bypass typeInternal bypass (automatic and manual)
Crest factor3 : 1
Conformance
Product certificationsCE

UKCA

StandardsEN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018

Environmental
Ambient air temperature for operation0…40 °C
Relative humidity0…95 % non-condensing
Operating altitude0…3000 m
Ambient air temperature for storage-20…60 °C
Storage Relative Humidity0…95 % non-condensing
Storage altitude0…15000 m
Acoustic level65 dBA
Heat dissipation2503 Btu/h
IP degree of protectionIP20
Communications & Management
AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power offYes
control panelMultifunction LCD status and control console
Surge Protection and Filtering
Surge energy rate600 J
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height1000 mm
Package 1 Width900 mm
Package 1 Length600 mm
Package 1 Weight196 kg
Contractual warranty
Warranty2 years repair or replace
