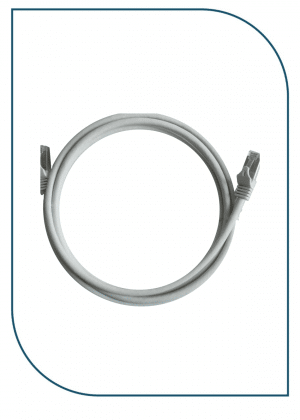

D-LINK Cat6A SFTP 1M Patch Cord LSZH/NCB-6ASGRYR1-1-LS

Description

NCB-6ASGRYR1-1-LS

Cat6A U/FTP Patch Cord

D-Link solid cables are the best twisted-pair cables in the market for transmitting data over local area Networks (LANs). These cables exceed performance requirements specified by the TIA/EIA-568B.2 / TIA/EIA-568C.2 and IEC 60603-7-4 standards.

As streaming video and multimedia over LAN are gaining popularity, users demand faster data transmission and reduced waiting time. D-Link cables are ideal for simple, cost-effective and high-speed transmission performance. They support a higher signal-to-noise ratio, providing better reliability for current applications and higher data rates for future applications.

SPECIFICATIONS

• 4 Pairs Individually Shielded Twisted Pair (U/FTP) Cable
• Conductor Metal: Bare Copper
• Color Code: Gray
• Conductor: 26 AWG
• Insulation Material: HD-PE
• Jacket Material: LSZH
• Heat-resistant: 60OC minimum (Temperature limited)

MODULAR CONNECTOR/PLUG

• RJ-45 8P FTP Plug
• Gold plated: 50U”
• Contact blade: Phosphor Bronze
• Temperature range: -10 ~ 80o C
• Dielectric withstanding voltage: 500V AC
• Insulation resistance: 35M Ohm (max.)
• Durability: 750 matching cycles
• Cable-to-plug tensile strength: 20lbs (89N) (min.)
• UL applications: 250V AC, 2A (max.) • Polycarbonate (PC) UL94-V-2

APPLICATION

• 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3)
• 100VG-AnyLAN (IEEE802.12)
• 550 MHz Broadband Video
• Voice, T1, ISDN
• 155/ 622 Mbps ATM
• Power over Ethernet (POE)

APPROVAL / CERTIFICATION

• Verified compliant with TIA/EIA-568C.2
• D-Link Product Hazardous Substance Management
• RoHs
