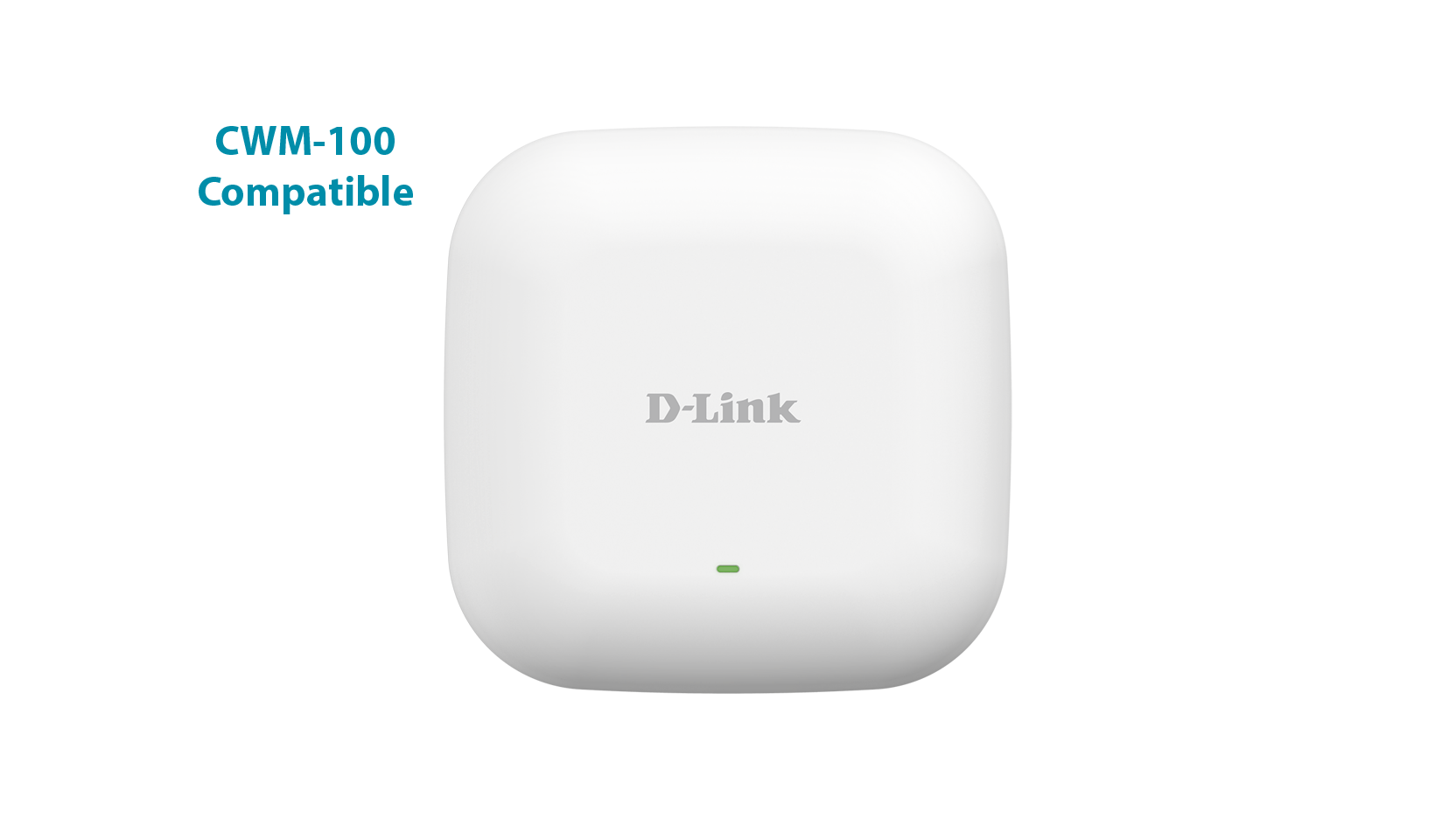

D-Link DAP-2230 Wireless N PoE Access Point
The DAP-2230 has a super compact design, and can be ceiling mounted, wall mounted or placed on a desktop to meet any wireless demands.
Description
DAP-2230
Specs :
For advanced installations, the DAP-2230 has integrated 802.3af Power over Ethernet (PoE) support, allowing this device to be installed in areas where power outlets are not readily available.
Type | Software Managed AP |
|---|---|
Wireless standard | Wireless N |
Frequency band mode | Single-band |
Wireless speed | 300 Mbps 2.4 GHz |
Antenna type | Embedded omni-directional antennas |
Antenna gain | 3 dBi for 2.4 GHz |
Power-over-Ethernet | Yes |
Wired interface | 1 x Fast Ethernet LAN |
Indoor/outdoor | Indoor |
Type of housing | Plastic |
Wireless modes | Access Point (AP) WDS bridge WDS with AP Wireless client |
Advanced features | 802.11k/r Roaming MIMO |
Maximum number of SSIDs | 8 |
Auto channel selection | YES |
WMM-PS/802.11e (U-APSD) | YES |
Wi-Fi scheduler | YES |
AP traffic load balance | YES |
WEP 64/128 bit | YES |
WPA/WPA2-Personal/Enterprise | YES |
TKIP/AES encryption | YES |
WPA_WPA2_PSK over WDS | YES |
WLAN partition | YES |
SSID broadcast disable | YES |
Rogue AP detection | YES |
Station isolation | YES |
MAC address filtering | YES |
802.1X authentication | YES |
DHCP server | YES |
802.1D STP | YES |
IGMP snooping | YES |
ARP spoofing | YES |
NTP | YES |
IPv6 | YES |
Management platform | Nuclias Connect |
WEB | YES |
SNMP (v1, v2c, v3) | YES |
CLI | YES |
Telnet | YES |
SSH | YES |
Syslog | YES |
Features :
High-performance Connectivity
• IEEE 802.11n wireless1
• Up to 300 Mbps1
• Fast Ethernet 10/100 LAN port Made for Business-class Environments
• Ideal for indoor deployment2
• Traffic control/QoS
• Internal RADIUS server
• Web redirection Trusted Security Features
• WPA/WPA2 – Enterprise/Personal
• WPA2 – PSK/AES over WDS
• MAC address filtering
• Network Access Protection (NAP)
• ARP spoofing prevention
• WLAN partition Convenient Installation
• Supports 802.3af Power over Ethernet
• Wall and ceiling mounting bracket included
