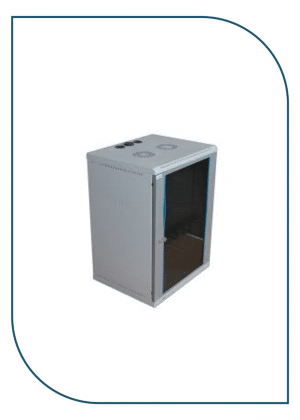

D-LINK OUT-DOOR RACK 12U 600*600 WITH 1 FAN , 1 SHLIF/NWR-12U-6060-GR-IP55/K

Description

NWR-12U-6060-GR-IP55/K

Data Sheet

Highlights

• Conforms to DIN 41494 OR equivalent ISO

Standards maximizing the usable mounting space

• Precision engineering capabilities and best

efficient software configuration product

technology provides the best product quality

and fastest delivery in the industry

Product Summary

NWR-12U-6060-GR-IP55/K D-Link Wall Mount Enclosures specially designed for small networking, domestic applications, Audio Video, Telecom and

Lab applications.

Enclosures are fabricated out of CRCA steel, CNC programmed, punched, bended, welded and powder coated with

highest quality standards.

Features

• Conforms to DIN 41494 OR equivalent ISO

Standards

• Adjustable 19” equipment mounting

verticals provide better mounting flexibility

and maximizes the usable mounting space

• Depth adjustable mounting slots

• Precision engineering capabilities and best

efficient software configuration product

technology provide the best product quality

and fastest delivery in the industry

• Top and bottom Panel with ventilation and

cable entry facility

• Provision to mount cooling fans on the top

panel

• Powder coated finish with pretreatment

process meeting all industry standards

• Grounding and Bonding Options. 100%

assured compatibility with all equipment

conforming to DIN 41494 (General

industrial standard for equipment)

Technical Data:

• NWR-12U-6060-GR-IP55/K Rack Standard : Conforms to DIN 41494 or equivalent standard
• Construction : Welded
• Front Door : Lockable Toughened Glass Door
• Basic Frame : Steel
• Equipment Mounting : DIN Standard Slots
• Mounting Angle : 19” Mounting angles made of formed steel
• Standard Finish : Powder Coated
• Top and Bottom Cover : Welded to Frame, Vented and
• Field Cable entry exit cut outs
• Standard Color : Grey
• Static Load : 40 kgs
