Description
S110-16LP2SR
Overview

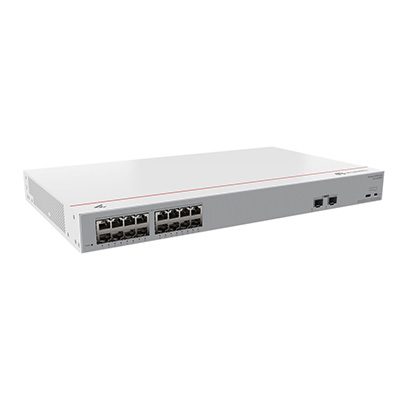

Table 4-13 Basic information about the S110-16LP2SR
| Item | Details |
|---|---|
| Description | S110-16LP2SR (16*10/100/1000BASE-T ports, 2*GE SFP ports, PoE+, AC power) |
| Part Number | 98012197 |
| Model | S110-16LP2SR |
Components
| 1 | PWR indicator | 2 | Sixteen GE PoE+ electrical ports |
| 3 | Electrical port indicator | 4 | Two GE optical ports |
| 5 | Optical port indicator | 6 | Port mode switch button NOTE: Standard Mode: All ports are in the same VLAN, and the flow control function is enabled. Port Isolation: All downlink ports are isolated from each other and cannot communicate with each other. Downlink ports can communicate only with uplink ports. (The last two downlink electrical ports are not isolated.) Uplink ports are not isolated or aggregated. Uplink Aggregation: Two uplink optical ports are aggregated into a trunk interface. Eth-Trunk supports load balancing only based on source physical ports. Flow Control Disabling: All ports are in the same VLAN and flow control is disabled. |
| 7 | Port indicator status switch button NOTE: Port status: The port indicator indicates the data transmission status of the port. PoE status: The port indicator indicates the PoE status of the port. | 8 | Ground screw |
| 9 | AC socket NOTE: Use the power cable delivered with the device. | – | – |
Ports
Table 4-14 Ports on the S110-16LP2SR
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| GE PoE+ electrical port | RJ45 | A GE PoE+ electrical port sends and receives service data at 10/100/1000 Mbit/s. The port supports the PoE function. | Ethernet cable |
| GE optical port | SFP | A GE optical port can send and receive data at 100/1000 Mbit/s. |
Indicators and Buttons
Table 4-15 Description of indicators on the device
| Indicator | Color | Status | Description |
|---|---|---|---|
| PWR indicator | – | Off | The device is powered off. |
| Green | Steady on | The power supply is normal. | |
| Port indicator (Port status)
| – | Off | The port is not connected or has been shut down. |
| Green | Steady on | A link has been established on the port. NOTE: During device startup, all port indicators are steady green for about 2 seconds and then off, indicating that service initialization is complete. | |
| Green | Blinking | The port is sending or receiving data. | |
| Port indicator (PoE status) | – | Off | The port is not supplying PoE power. |
| Green | Steady on | The port is supplying power to the connected PD. | |
| Green | Blinking | The PoE power of the device is insufficient, and the port cannot provide power to the PD. |
Power Supply System
The device uses the power adapter delivered with the device to supply power to the device and the connected PD. The power adapter can provide 124 W PoE power, which ensures full PoE power on 8 ports in compliance with 802.3af or on 4 ports in compliance with 802.3at.
Heat Dissipation System
The device has no fans and uses natural heat dissipation.
