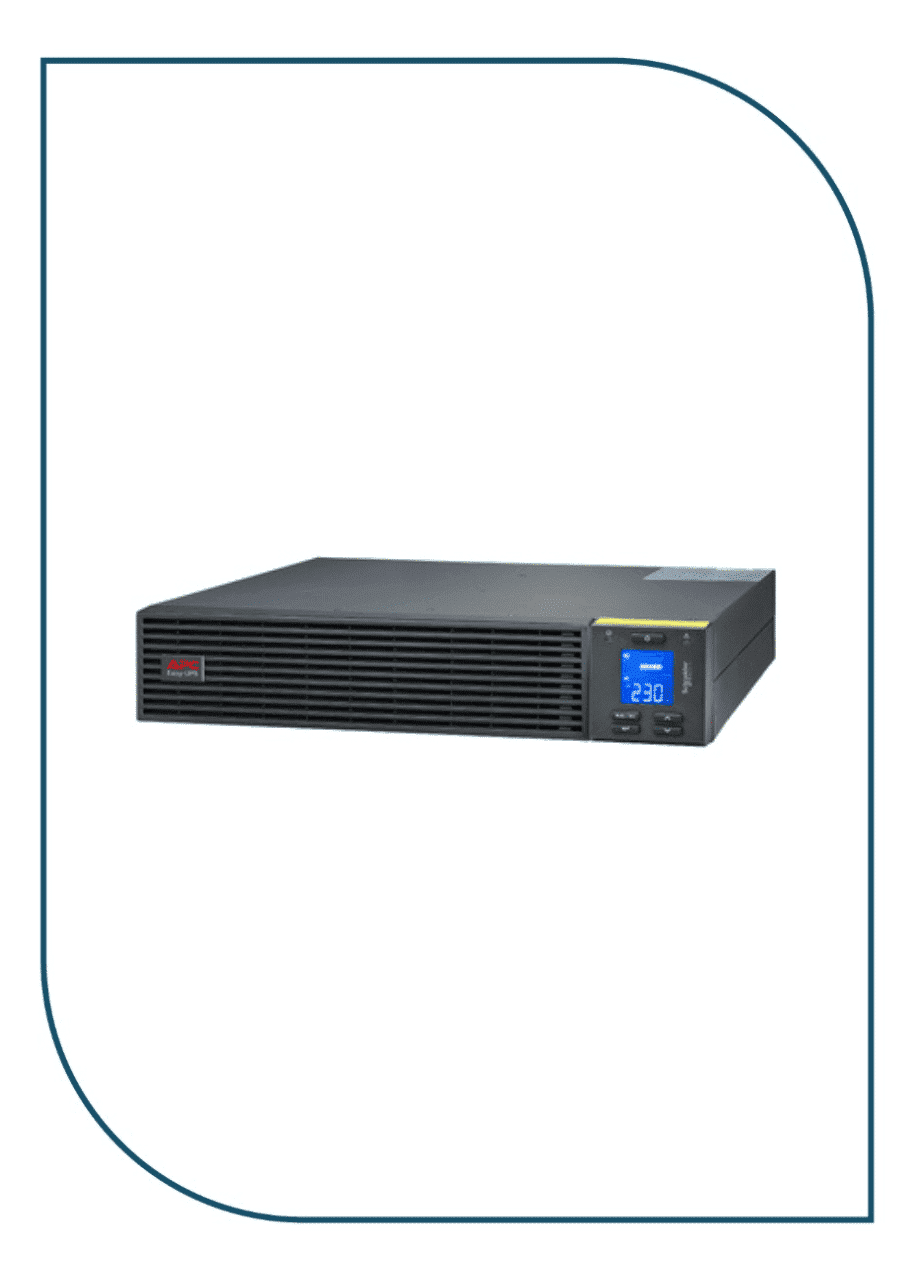

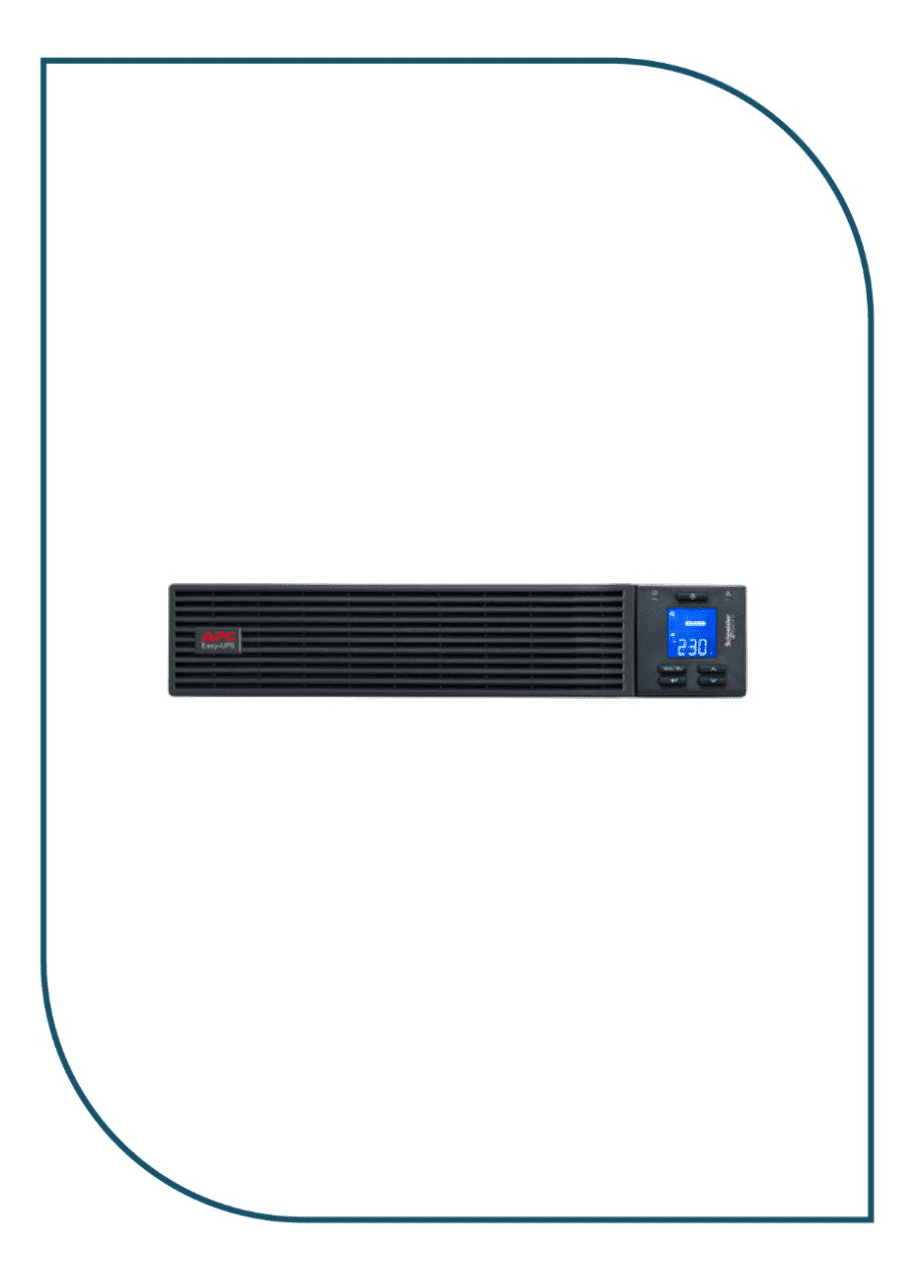

APC Easy UPS On-Line, 3kVA/2400W, Rackmount 2U, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, W/ rail kit
APC Easy UPS On-Line, 3kVA/2400W, Rackmount 2U, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, W/ rail kit - Image 2

APC Easy UPS On-Line, 3kVA/2400W, Rackmount 2U, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, W/ rail kit

SKU: SRV3KRIRK
In Stock
61,250.00 $ Original price was: 61,250.00 $.57,820.00 $Current price is: 57,820.00 $.
In Stock

SRV3KRIRK This 3kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions.

In Stock
This item is low in stock.

Item(s) left: 1

Brand:

Description

SRV3KRIRK

DATA SHEET

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions.

Specifications

Overview
Presentation High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Lead time Usually in Stock
Main
Run time for load

W

information_stroke
Min-max: 240-2400 W
4min 24s
Max. Capacity Used
information_stroke

100 %
Main Input Voltage 230 V
Product or component type Uninterruptible power supply (UPS)
Other Input Voltage 220 V

240 V
Main Output Voltage 230 V
Other Output Voltage 220 V

240 V
Rated power in W 2400 W
rated power in VA 3000 VA
Input Connection Type IEC 60320 C20

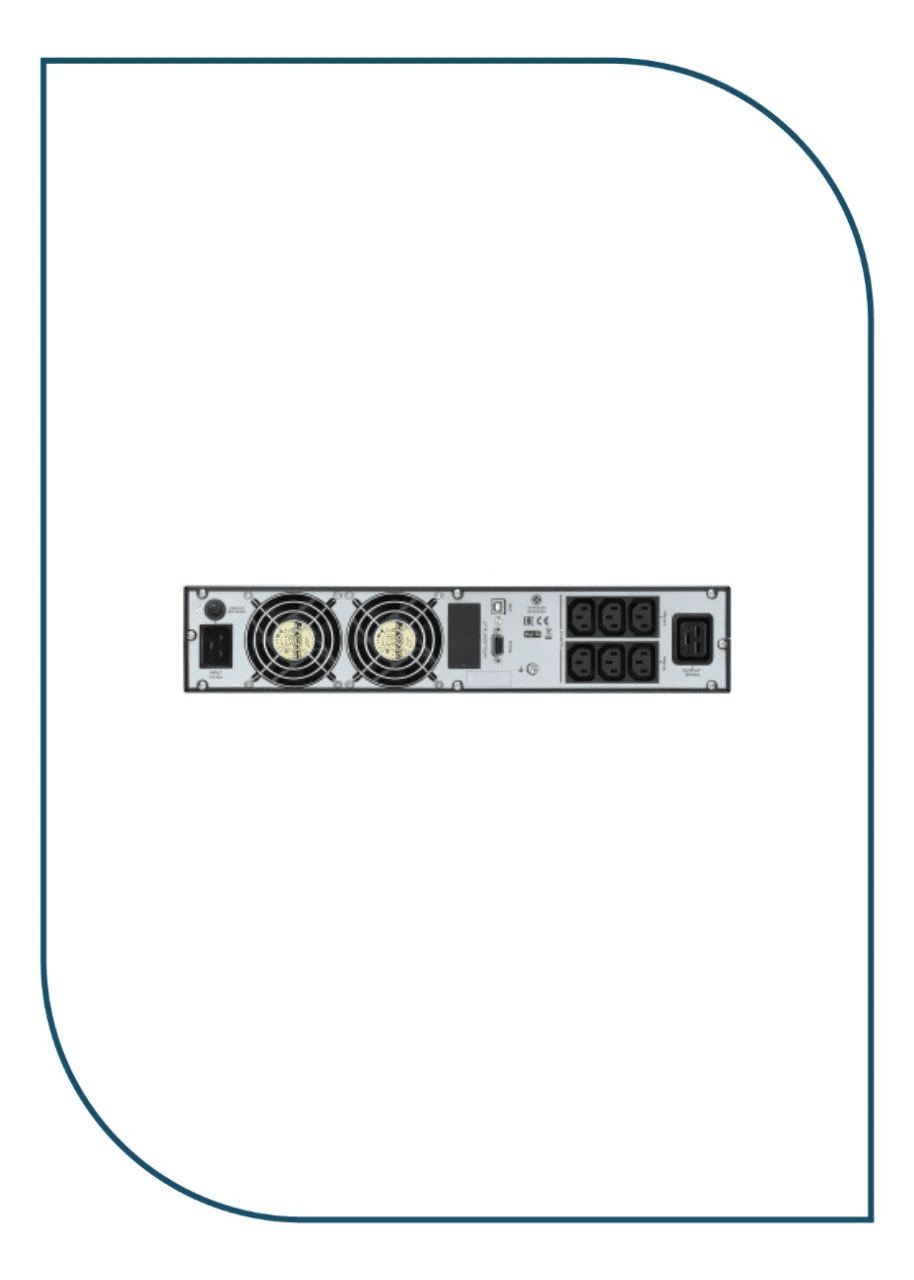

output connection type 6 IEC 60320 C13

1 IEC 60320 C19
Number of rack unit 2U
Cable length 1.48 m
Number of cables 1
Provided equipment 1 IEC 60320 C19 to Schuko power cable

1 IEC 60320 C13 to C14 power cable

1 USB cable

1 RS-232 configuration cable

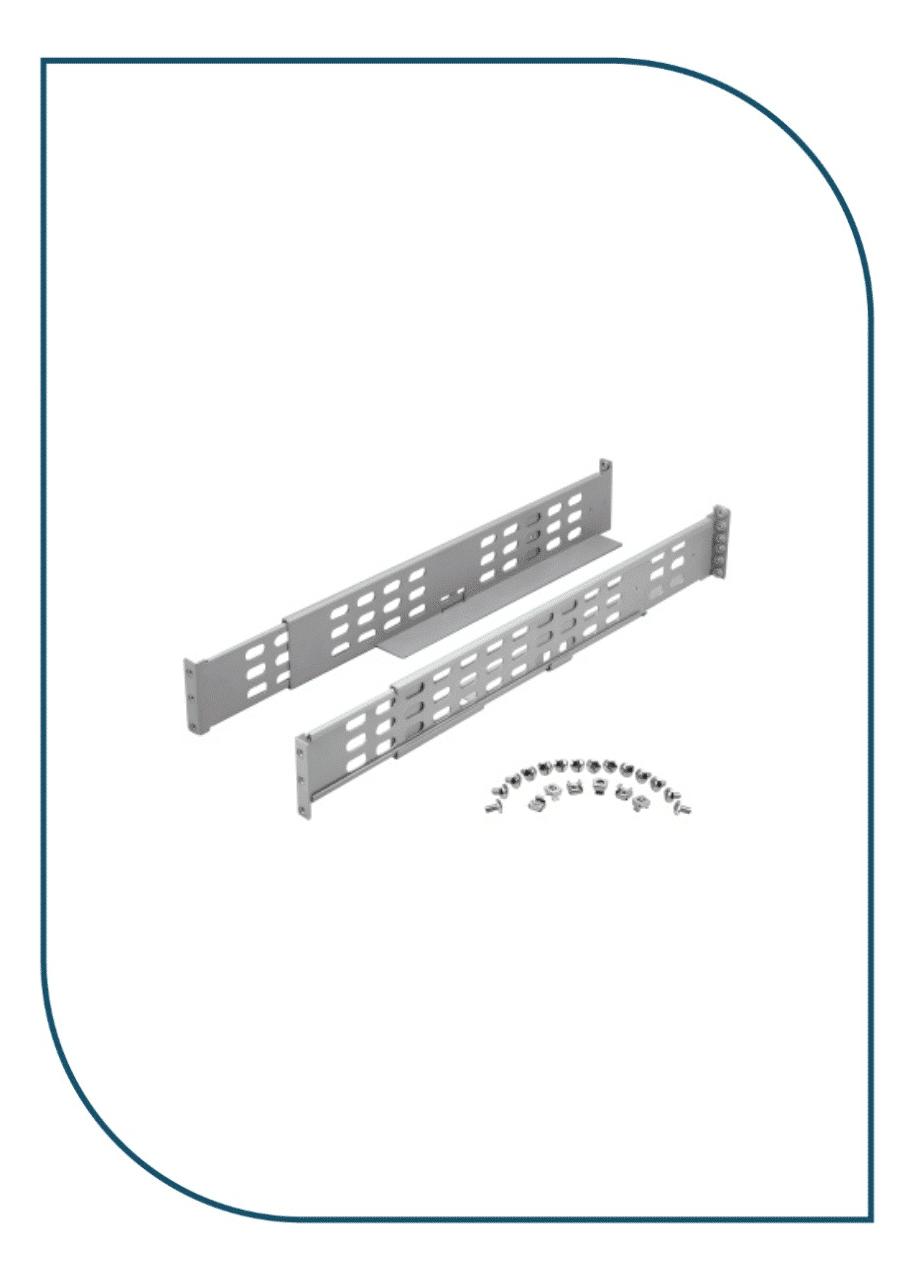

1 rack mounting brackets

1 rack mounting support rails

user manual
Range of product Easy UPS On-Line
Batteries & Runtime
Run Time

Efficiency

Battery type Lead-acid battery
Battery voltage 72 V
Extended runtime 0
Number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 4 h
Battery life 3…5 year(s)
Replacement battery

Battery charger power 60 W rated
General
Number of power module filled slots 0
Number of power module free slots 0
Redundant No
Physical
Colour Black (RAL 7010)
Height 8.6 cm
Width 43.7 cm
Depth 63.2 cm
Net weight 27.6 kg
Mounting location Front
Mounting preference Lower
Mounting mode Rack-mounted
USB compatible Yes
Mounting position Horizontal
Input
Input voltage limits 110…285 V half load

160…280 V full load
Network frequency 40…70 Hz auto sensing
Output
Maximum configurable power in VA 3000 VA
Maximum configurable power in W 2400 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion 3 %
UPS type Double conversion online
Wave type Sine wave
Efficiency 88 % (full load)
Bypass type Internal bypass (automatic and manual)
Crest factor 3 : 1
Conformance
Product certifications CE

UKCA

EAC

TISI
Standards EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018
Environmental
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…3000 m
Ambient air temperature for storage -20…50 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…15000 m
Acoustic level 50 dBA
Heat dissipation 910 Btu/h
IP degree of protection IP20
Communications & Management
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Free slots 1
control panel Multifunction LCD status and control console
Surge Protection and Filtering
Surge energy rate 600 J
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 22.8 cm
Package 1 Width 79.4 cm
Package 1 Length 57 cm
Package 1 Weight 29 kg
