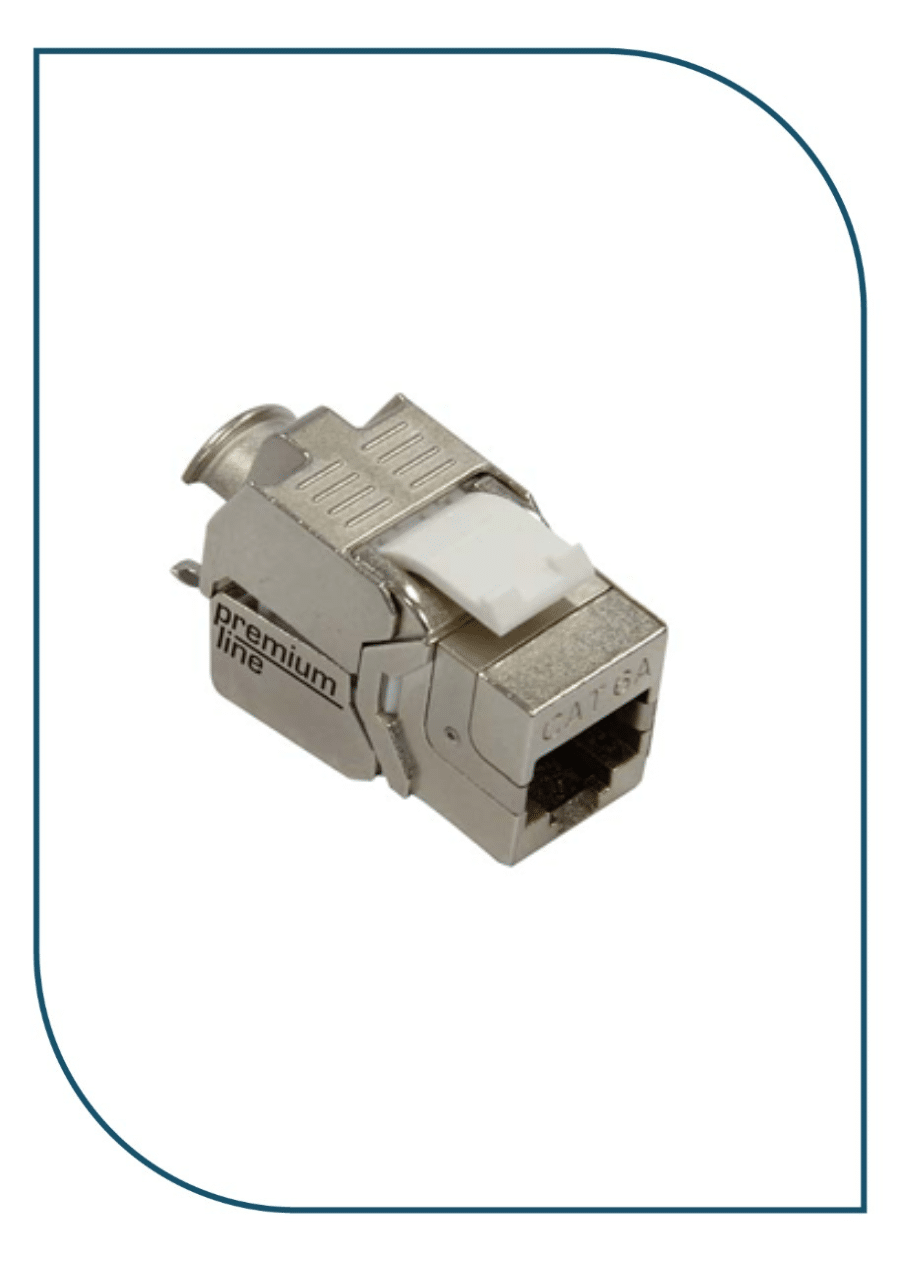

Premium Line 109824010 Category 6A 180° Shielded Die-casting Keystone Jack, Slim Type
Out of stock
Out of stock
109824010
Premium-Line Cat.6A 180 ° Shielded Die-casting Keystone Jack Slim Type with shutter conform to TIA/EIA-568C.2, ISO/IEC 11801 and EN 50173-1 Class EA specifications, supports T568 A&B wiring
Out of stock
Description
109824010
Cat. 6A 180° Shielded KJ
109824010
Category 6A 180° Shielded Die-casting Keystone Jack, Slim Type
Premium-Line Cat.6A 180 ° Shielded Die-casting Keystone Jack Slim Type with shutter conform to TIA/EIA-568C.2, ISO/IEC 11801 and EN 50173-1 Class EA specifications, supports T568 A&B wiring.
With its good & stable performance, this module earns good sales result in the market.
Physical Characteristics |
|
| Body Material | Housing: PC, UL94 V-0 |
| Jack Contact | phosphor bronze, 50μ inch gold plated over nickel |
| IDC Contacts | 100μ inch nickel plated over phosphor bronze |
Electrical Characteristics |
|
| Dielectric Strength | 1000V RMS for 1min |
| Current Rating | 1.5Amp Max. |
| Insulation Resistance | 10MΩ Min. |
| Contact Resistance | 2mΩ per contact |
| Temperature Range | -10°C to 60°C |
| Humidity | 10%~90%; non condensing |
| Admissible Conductor | 22AWG ~ 26AWG insulation wire |
| Body Material | Housing: PC |
| Body: Zinc Die-casting | |
| Jack contact | Phosphor bronze, 50μ inch gold |
| plated over nickel plated in contact area | |
| Operating life: Minimum 750 insertions | |
| 100μ inch nickel plated over phosphor bronze | |
| IDC Contacts | Operating life: Minimum 250 Re-terminations |
Applications
|
|
| PART NO. | DESCRIPTION | PACKING SIZE |
| 109824010 | Cat.6A 180° shielded die-casting keystone jack, slim type | 53.8×35.2×27 cm |
