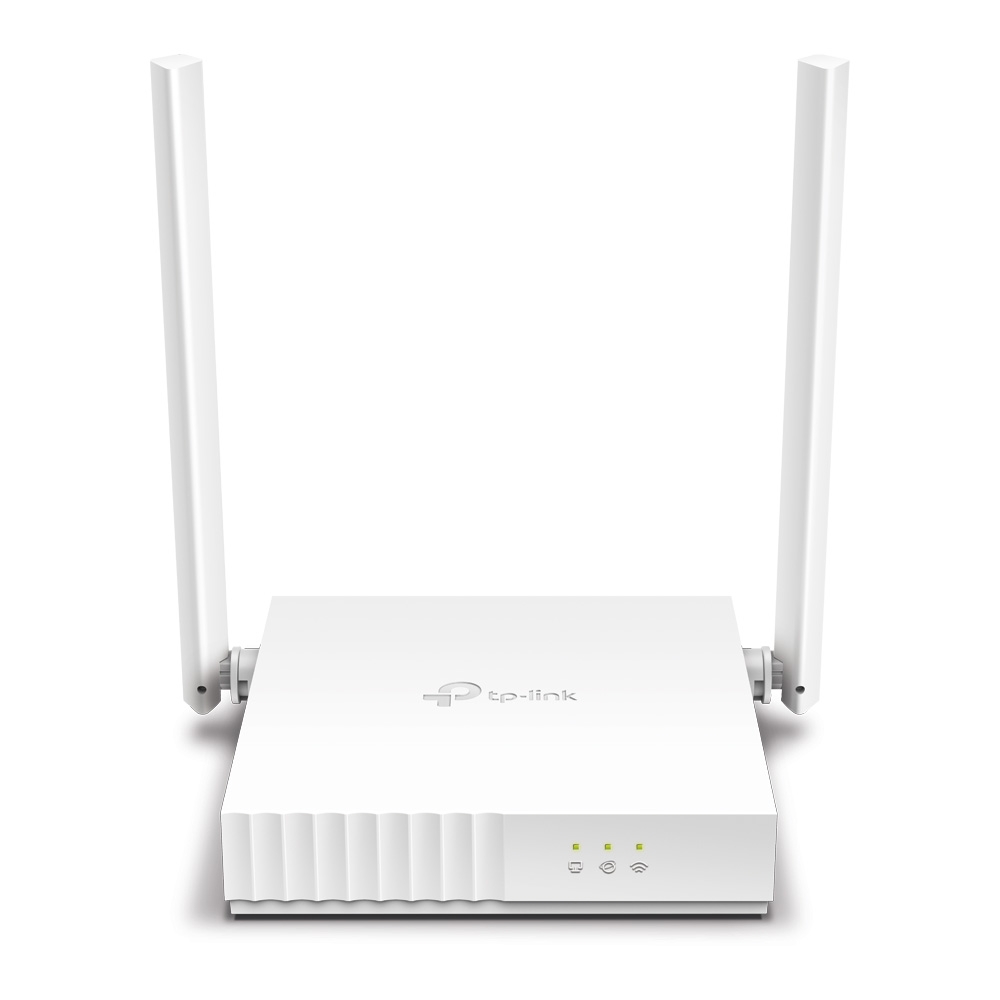

TL-WR820N 300 Mbps Multi-Mode Wi-Fi Router
TL-WR820N
Supports Router, Repeater, Client, AP and hotspot operation modes
Easy installation in minutes
Description
TL-WR820N
| SECURITY | |
|---|---|
| Network Security | SPI Firewall
Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 2.4 GHz Guest Network |
| WiFi Encryption | WEP
WPA WPA2 WPA/WPA2-Enterprise (802.1x)* *Only Available in the Router and AP Modes. |
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 4
IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | N300
2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 2 Bedroom Houses
2× Fixed Antennas |
| WiFi Capacity | Legacy |
| Working Modes | Router Mode
Access Point Mode Range Extender Mode Client Mode Hotspot Mode (WISP Mode) |
| HARDWARE | |
|---|---|
| Processor | Single-Core CPU |
| Ethernet Ports | 1× 10/100 Mbps WAN/LAN Port |
| Buttons | Reset Button |
| Power | 5 V ⎓ 1 A |
| SOFTWARE | |
|---|---|
| Protocols | IPv4
IPv6 |
| Parental Controls | URL Filtering
Time Controls |
| WAN Types | Dynamic IP
Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding | Virtual Server
Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy |
| DHCP | Address Reservation
DHCP Client List Server |
| DDNS | NO-IP
Comex DynDNS |
| Management | Tether App
Webpage |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE:
<20dBm(2.4GHz) FCC: <30dBm |
| WiFi Reception Sensitivity | 270M: -70dBm@10% PER
130M: -75dBm@10% PER 108M: -88dBm@10% PER 54M: -78dBm@10% PER 11M: -100dBm@8% PER 6M: -92dBm@10% PER 1M: -100dBm@8% PER |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 2.2 × 2.2 × 0.7 in
(57 × 57 ×18 mm) |
| Package Contents | Wi-Fi Router TL-WR802N
Power Adapter USB Cable RJ45 Ethernet Cable Quick Installation Guide Resource CD |
