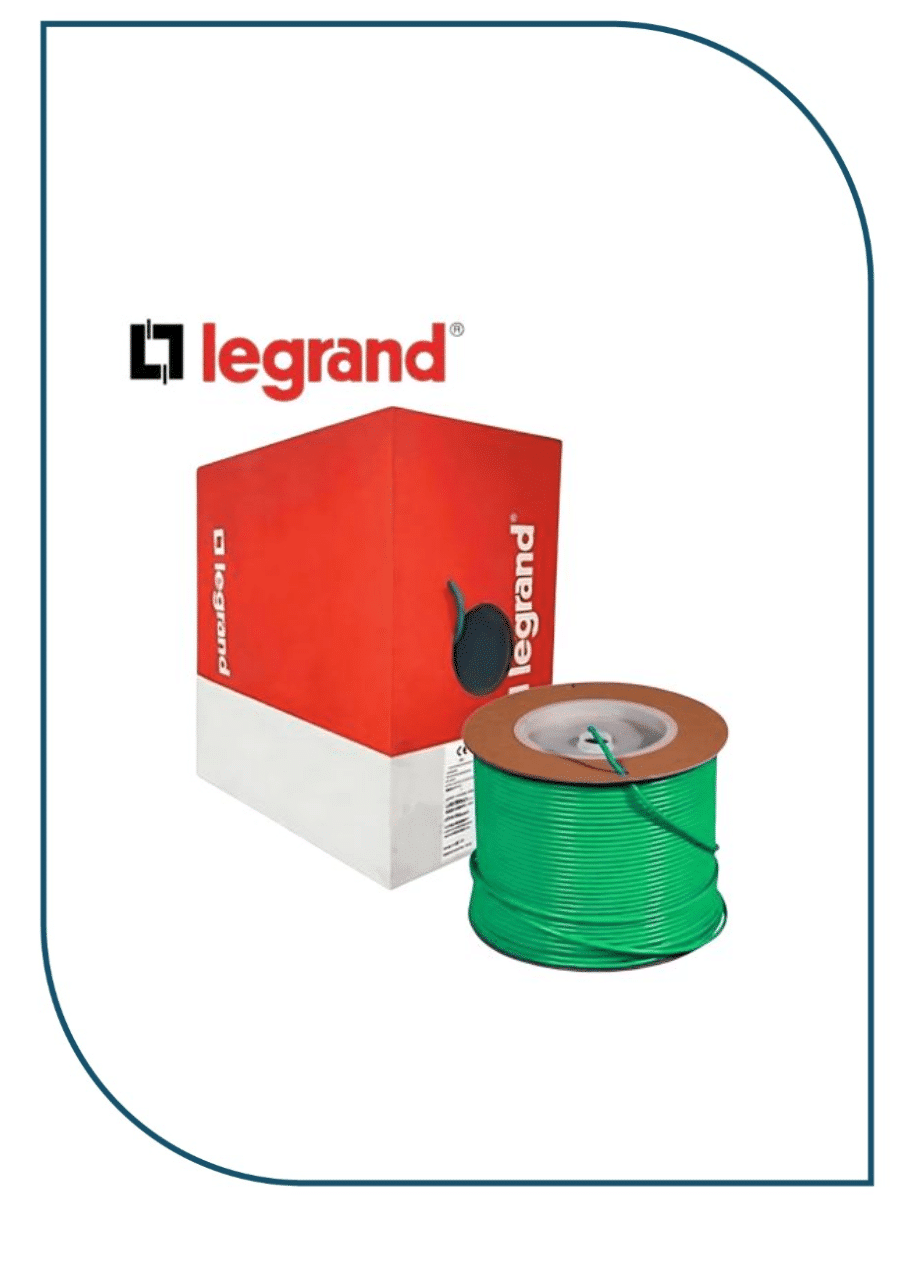

Legrand Cat.6 U/UTP LSZH Cable for Local Networks (632842)
In Stock
In Stock
Legrand (632842) Cat 6 network cable with 4 twisted pairs (100 ohms), designed for high-speed data transmission.
In Stock
Description
632842
Legrand Cat.6 U/UTP LSZH Cable for Local Networks –
Cat 6 network cable with 4 twisted pairs (100 ohms), designed for high-speed data transmission.
Ideal for horizontal floor or backbone distribution, supporting Class E up to 1000 Base-T applications.
Characterised up to 250 MHz and compatible with 802.3 bt PoE++ (Type 4).
| Specification | Details |
|---|---|
| Type | U/UTP |
| Pairs | 4 |
| Gauge | AWG24 |
| Insulation | Solid PE |
| Protection | LSZH sleeve |
| Outer Diameter | 5.5 ± 0.3 mm |
| Weight | 32 kg/km |
| Minimum Bending Radius | 23 mm |
Electrical Features (at 20°C)
| Property | Value |
|---|---|
| Max Linear Resistance | ≤145 Ω/km |
| Dielectric Strength | 1 kV / 1 min |
| Insulation Resistance | ≥5000 MΩ·km |
| Propagation Speed | 66% |
| Impedance at 100 MHz | 100Ω ±15% |
Environmental
| Property | Value |
|---|---|
| Operating Temperature | –20°C to +60°C |
| Fire Rating | IEC/EN 60332-1-2 |
| Smoke Density | IEC/EN 61034-2 |
| Toxicity | IEC/EN 60754-2 |
Packaging
| Property | Details |
|---|---|
| Colour | Green (RAL 6026) |
| Length | 305 m |
| Packaging Type | Box |
Standards
| Standard / Compliance | Description |
|---|---|
| ISO/IEC 11801 | International cabling standard |
| EN 50173 | European structured cabling standard |
| IEC 61156 | Twisted pair cable specification |
| IEEE 802.3af / at / bt | Power over Ethernet (PoE Types 1–4, up to 90W) |
